Your Professional MPO Fiber Cable Supplier
Our goal is to become your true partner in the field of butterfly-shaped indoor optical cable in China. Potel Cable Group Co, Ltd has a complete smart communication industry chain, with two major industrial production and R&D bases. We have a skilled engineering team dedicated to refining every stage, from product development and process improvement to production oversight, ensuring every product delivered meets rigorous quality and performance standards. The price is competitive and the product is quality-assured, which is a good choice for your long-term cooperation.
Why Choose Us
Production equipment: Our company has 500 sets of production line manufacturing equipment, and has built 3 fiber drawing towers and 6 fiber production lines.
Production market: Our company's products are very popular in the market, providing first-class products and high-quality technical services to telecom operators, smart building industry and communication industry customers in more than 20 countries and regions around the world.
Our certificates: We have established a strict quality control system and won 145 communication product certifications. Our production and manufacturing have won IS09001, IS014000, 0HSAS8000, US UL certification, EU CE certification, environmental protection RoHS and other quality certifications.
Our services: In the pre-sales stage, our team of experts will recommend the most suitable products according to the needs of customers and provide detailed technical consultation. During the sales period, we ensure timely delivery and provide installation guidance. For after-sales, we provide long-term technical support, warranty services and spare parts to help customers maximize the use of products and get reliable maintenance during use.
Advantages of MPO Fiber Cable Connectivity
High-density fiber connectivity:
In situations where space is at a premium, high-density fiber connectivity has many benefits. It enables space to be used efficiently by reducing the footprint of cabling infrastructure through mpo and other high-density connectors that consolidate numerous fibers into one interface.
Scalability and flexibility:
Scale and flexibility are two key features of mpo fiber optic cabling systems that can support dynamic and growing network architectures. These systems enable expansion by integrating more fibers into the system without a need for major infrastructure changes.
Reduction of cable clutter:
High-density mpo fiber optic cabling systems have the advantage of reducing cable clutter. They do this by merging many fibers into one connector, so fewer individual cables must deal with it, making for a tidier network environment.
Types of MPO Fiber Cable
Trunk cables:
These fiber trunk cables have the same type and amount of connectors at both ends, so no conversions or breakout cables are needed. MPO fiber cables are perfect for high-density, high-speed, and very low signal-loss applications.

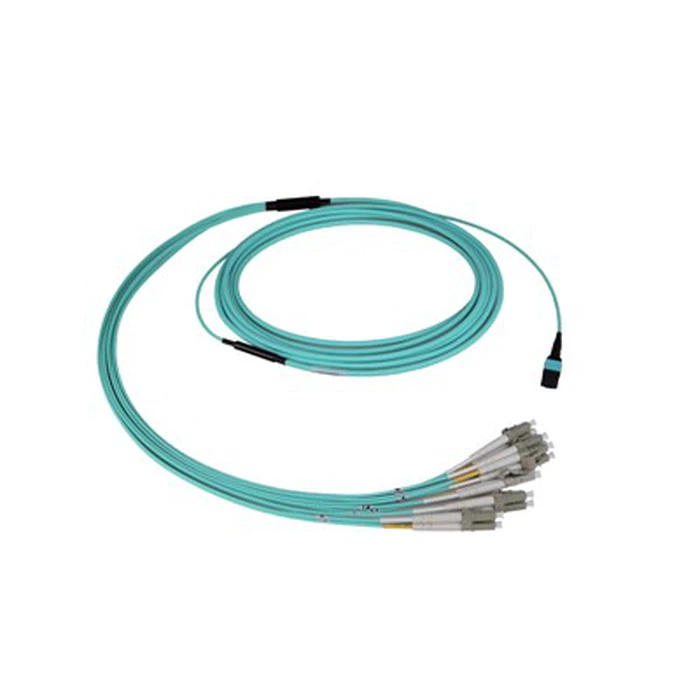

Breakout cables:
This type of MPO cable is used to combine or split data flow. Examples include splitting a single signal into four strands or eight strands to direct the signal wherever it’s needed efficiently. This simplifies the data center topology and reduces the equipment count.
Conversion cables:
This cable type is similar to a breakout cable but provides different fiber counts and types. A typical conversion cable runs a 24-fiber cable to 2×12 or 3×8 fiber. This approach eliminates the need for separate breakout cables to improve the flexibility of the cabling system.
Specification of MPO Fiber Cable
|
Parameters |
Connector Interface |
Multimode |
Single mode |
|
Insertion loss |
MPO |
≤0.25dB (ultra - low loss) |
≤0.35dB (ultra - low loss) |
|
≤0.35dB (low loss) |
≤0.6dB (low loss) |
||
|
≤0.5dB (standard loss) |
≤0.75dB (standard loss) |
||
|
Return loss |
MPO |
≥25dB |
≥60dB (8°Angle Polish) |
|
Environmental Performance |
Operating Temperature |
-20~+60℃ |
|
|
Storage Temperature |
40~+70℃ |
||
|
Installation temperature |
-5~+50℃ |
||
Features of MPO Fiber Cable
100% testing of structural dimensions and optical transmission performance, with a paper copy of the factory test report included with the shipment(transmission performance and 3D test report), electronic report saved for 2 years for future reference. High-performance and high-quality fiber optic connectors used. Customizable in different lengths, polarities, and fiber types. Cable outer diameter: 3.0±0.3mm or 4.5±0.3mm two specifications optional.
Sheath material: LSZH/OFNP. Cable strength member: Aramid. Sheath default colors: Single mode OS2 yellow/OM3 multimode aqua/OM4Magenta or aqua. Bending radius: It is recommended to use a bending radius greater than 10 times the cable diameter.
Application of MPO Fiber Cable
MPO fiber cables are used for high-speed switch-to-switch backbone data center applications. As one example, an eight-fiber cable supports four fibers transmitting and four receiving. Speeds range from 10 to 25 Gbps, with expected improvements up to 200 and 400 Gbps. They are also used in Local Area Network (LAN) installations.
Packing and Shipping of MPO Fiber Cable
|
Packing |
Corrugated boxes |
|
Shipping |
Shipped by road, sea, rail |
FAQ
As one of the leading mpo fiber cable manufacturers in China, we warmly welcome you to wholesale discount mpo fiber cable from our factory. All customized products are with high quality and low price. Contact us for free sample.
24 core fiber optic cable, mpo fiber jumper, Mpo mpo Backbone Fiber Optic Cable
