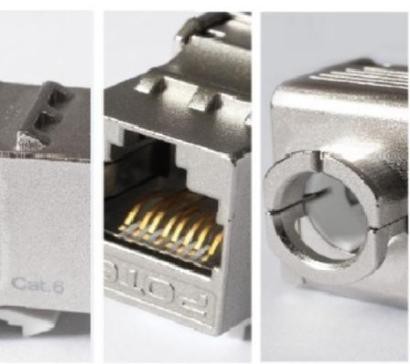

Cat.6 Shielded Rj45 Module
Used for horizontal cable termination in structured cabling systems, supporting high-speed applications up to 10Gbps.
Description
CAT.6 Shielded RJ45 Module
Product Application
Used for horizontal cable termination in structured cabling systems, supporting high-speed applications up to 10Gbps.
Product Features
- Tool-free Installation: Easy and quick installation and maintenance without the need for additional tools.
- Full Metal Shell: Provides excellent shielding performance.
Product Performance Parameters
|
Gold Plating Thickness |
50μ〞 |
|
Electrical Performance |
|
|
Rated Current |
1.5A |
|
Insulation Resistance |
≥500MΩ |
|
Contact Resistance |
≤20MΩ |
|
Conductor DC Resistance |
≤0.3Ω |
|
Withstand Voltage |
DC 1000V, AC 750V, no breakdown within 1 minute |
|
Mechanical and Weathering Indicators |
|
|
Plugging and Unplugging Life |
≥750 times (using FCC certified crystal head) |
|
IDC Wire Connection Life |
200 repeated connections |
|
Operating Temperature |
-10°C~+60°C |
|
Operating Humidity |
10%~90% relative humidity |
|
Storage Temperature |
-40°C~+70°C |
